Orbbec

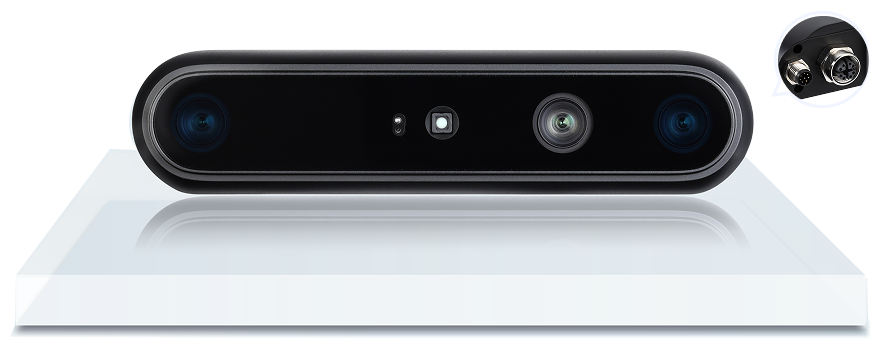

Orbbec Gemini 335Le

Name: Orbbec Gemini 335Le
Item: Orbbec Gemini 335Le
Rating: 8.5
Author: robovisionhub

$523

8.5

★★★★☆ 8.5 Available

📡 2-Eye Camera

📅 2024

📝 2026-07-13 Review

🎯 Robotics

Score Breakdown

8.7

Image Quality

8.4

Video Performance

8.6

AI Features

8.2

Build Quality

8.3

Value for Money

95mmHigh;IP65;-1050℃Wide;0.1720m+Wide;Global ShutterRGB+IR;IMUSupports;Multi-camera Sync;ASICDepthProcessing

📝 Verdict

Well-suited for Robot,AMR,No,IndoorRobot,Robotic ArmRecognition applications.

📋 Full Hardware Specifications

📡 Multi-Eye System Specs

Eye Count (Camera Count)	2
Depth Range (m)	0.17 – 20m+(RecommendedRange:0.25 – 6m)
Depth Accuracy (mm)	≤0.8%(1280×800 @2m, 90%×90% ROI);≤1.6%(@4m, 80%×80% ROI)
Sync Mode	SupportsMulti-camera Sync,Hardware Trigger
Optimal Working Distance (m)	0.17 – 20m+(RecommendedRange:0.25 – 6m)

🔬 Sensor Specifications

Sensor Model / Type	Global Shutter(Global Shutter)
Per-Eye Resolution (MP)	RGB:1280×800;Depth:1280×800
Max Frame Rate (FPS)	Depth:High30fps;RGB:High60fps
Shutter Type	Global Shutter(Global Shutter)
Field of View (°)	Depth:H90° × V65°;RGB:H94° × V68°

🔌 Interface & Connectivity

Data Interface	USB 3.0 Type-C
Trigger Input	SupportsMulti-camera Sync,Hardware Trigger
Power Supply	DC 5V≥1.5A
OS Support	NVIDA/Ubuntu/Windows/Raspberry Pi/Linux/Android/macOS/ROS/Java
