Overview

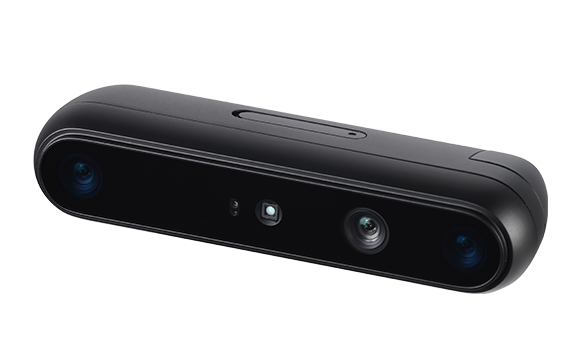

The Orbbec Gemini 335 is the flagship product of the Gemini 330 series, combining active and passive stereo vision with a custom MX6800 ASIC for efficient on-camera depth processing. It represents Orbbec’s answer to the growing demand for high-quality 3D vision that works reliably in both indoor and outdoor environments without breaking the budget.
Key Features
- Hybrid Stereo: Active IR projection combines with passive stereo matching for consistent performance in all lighting conditions
- Custom ASIC: MX6800 depth engine reduces latency and eliminates the need for external GPU processing
- Wide FOV: 90° horizontal × 65° vertical depth FOV covers large areas without blind spots
- IP5X Protection: Dust-resistant design suitable for warehouse and factory environments
- Multi-Camera Sync: Hardware synchronization supports multi-view setups via dedicated sync hub
- Compact Form Factor: 90×25×30mm and 97g fits easily on robotic arms and drones
Performance Analysis
The Gemini 335 delivers depth at resolutions up to 1280×800 at 30 FPS, with RGB color at 1920×1080. Depth accuracy reaches ≤1.5% RMSE at 2m in controlled testing. The camera operates from 0.1m to 20m+ theoretically, with optimal results within the 0.26-3m range.
The hybrid active/passive approach is what sets the Gemini 335 apart. In well-lit environments, it leverages passive stereo for natural depth with no interference. In darkness or texture-poor scenes, the active IR projector kicks in to provide reliable depth data. This dual-mode operation gives it versatility that pure passive stereo cameras cannot match.
Use Cases
Autonomous Mobile Robots (AMRs): The wide FOV and indoor/outdoor capability make it ideal for warehouse AMRs and delivery robots that transition between environments.
Robotic Arms: Compact size and multi-camera sync enable precise pick-and-place and bin-picking applications.
Drones: Light weight (97g) and outdoor performance suit aerial inspection and mapping.
Logistics: Volume measurement, pallet detection, and automated sorting benefit from the wide FOV and accuracy.
Comparison
Compared to the Orbbec Femto Bolt (also reviewed on this site), the Gemini 335 uses stereo technology instead of ToF, which provides better outdoor performance. Against the Intel RealSense D455, the Gemini 335 offers competitive specs at a lower price with the added benefit of an integrated ASIC for reduced host CPU load. The active/passive hybrid approach gives it an edge over purely passive stereo cameras in challenging lighting conditions.
